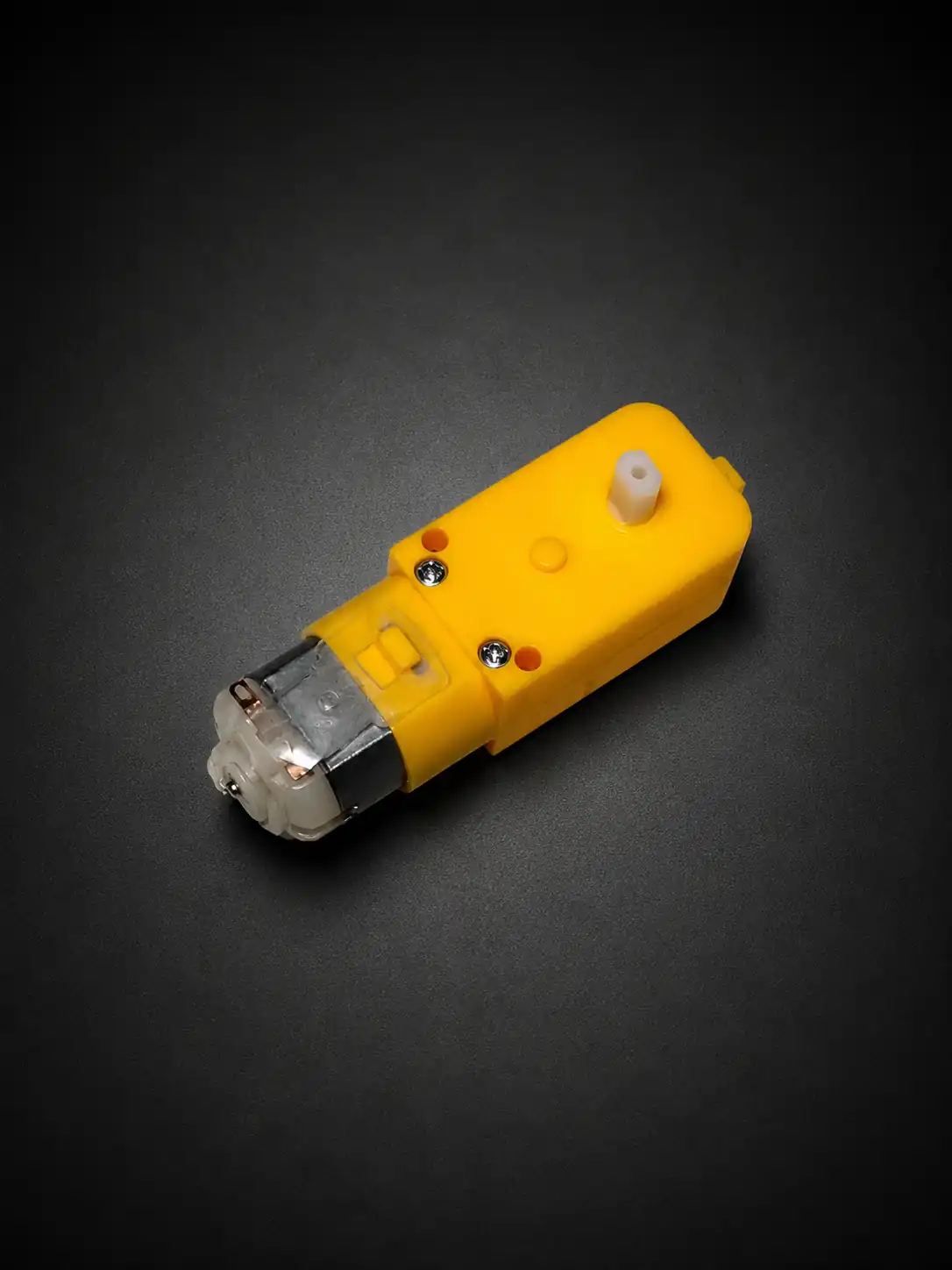

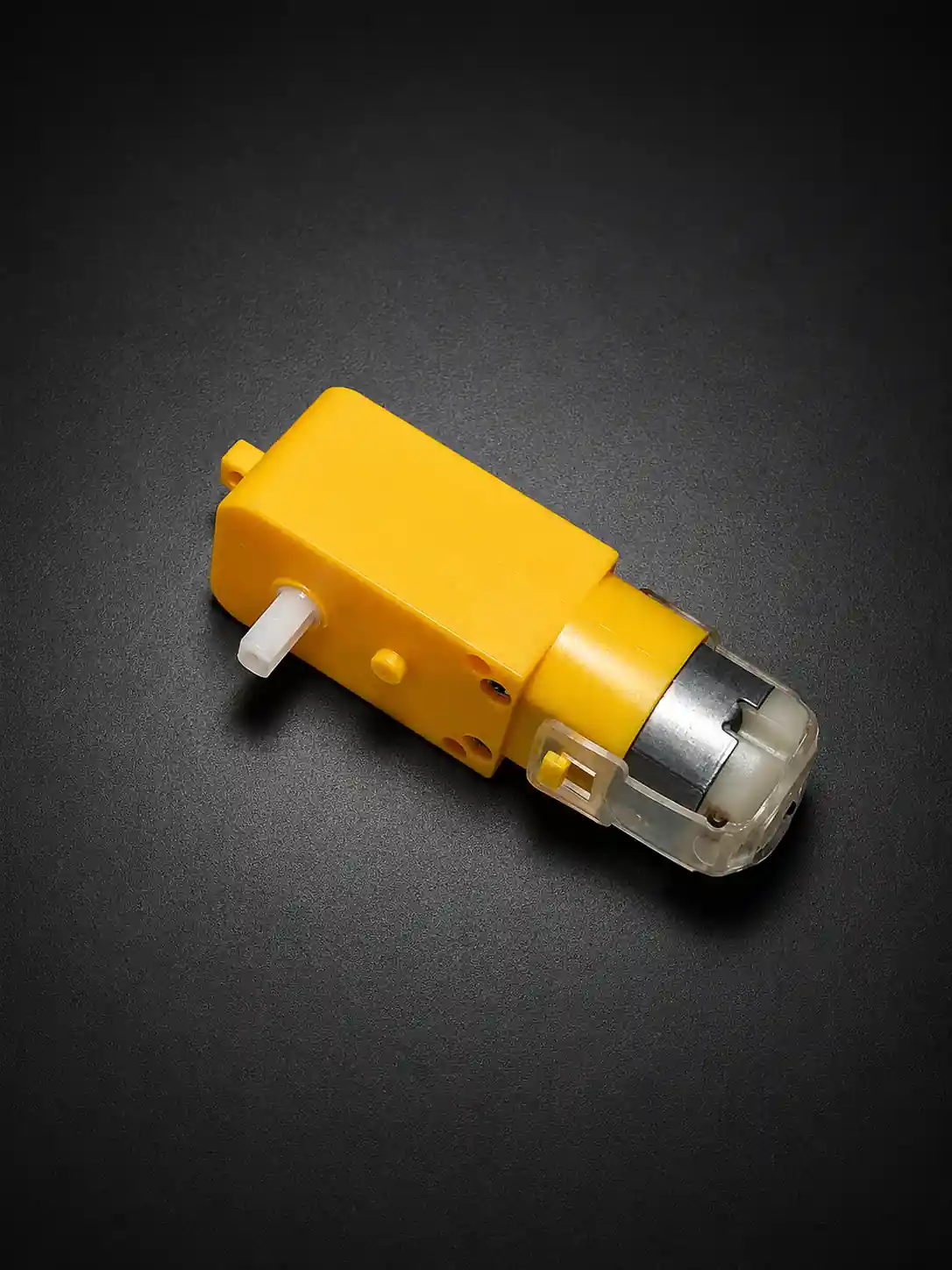

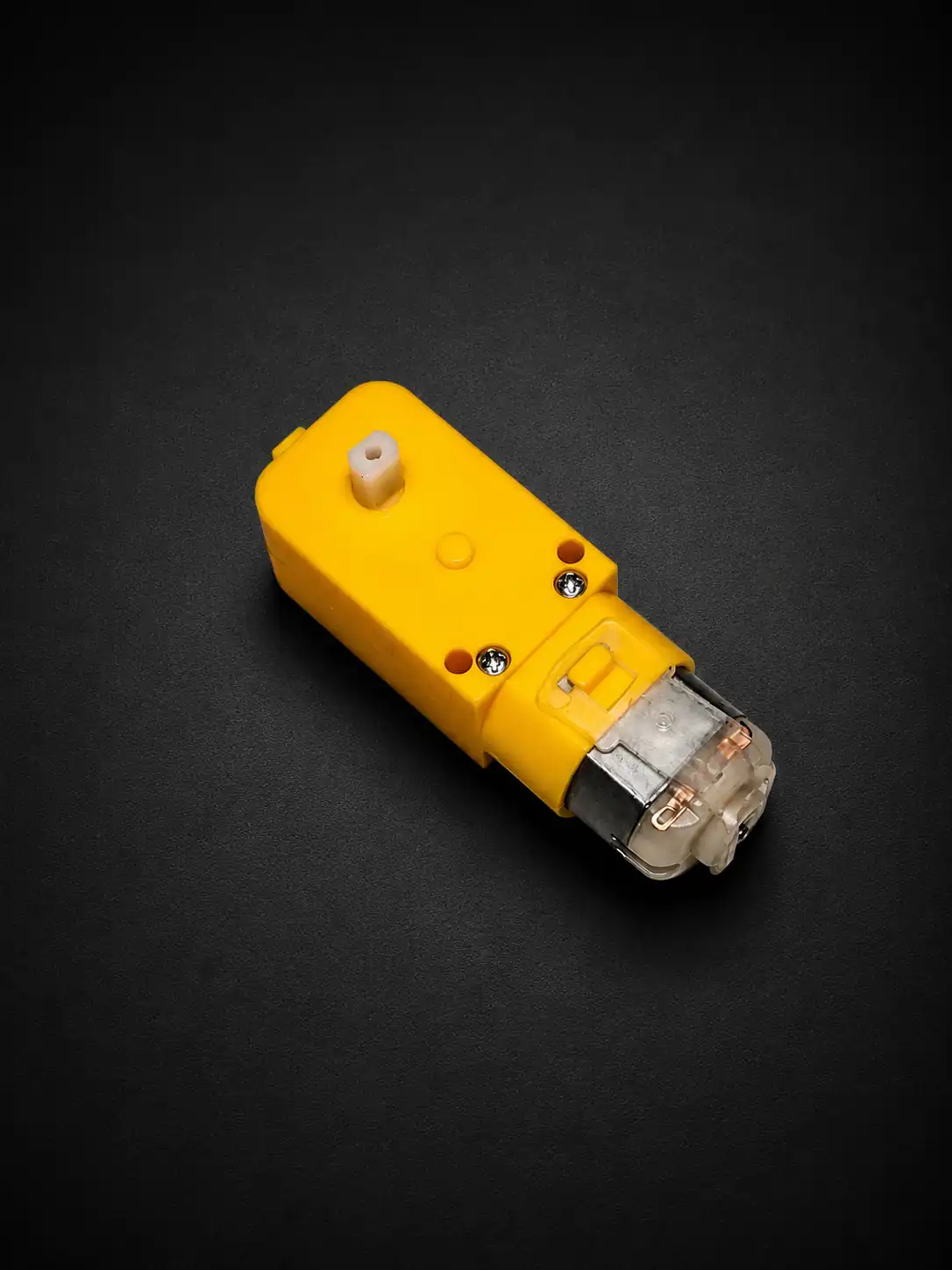

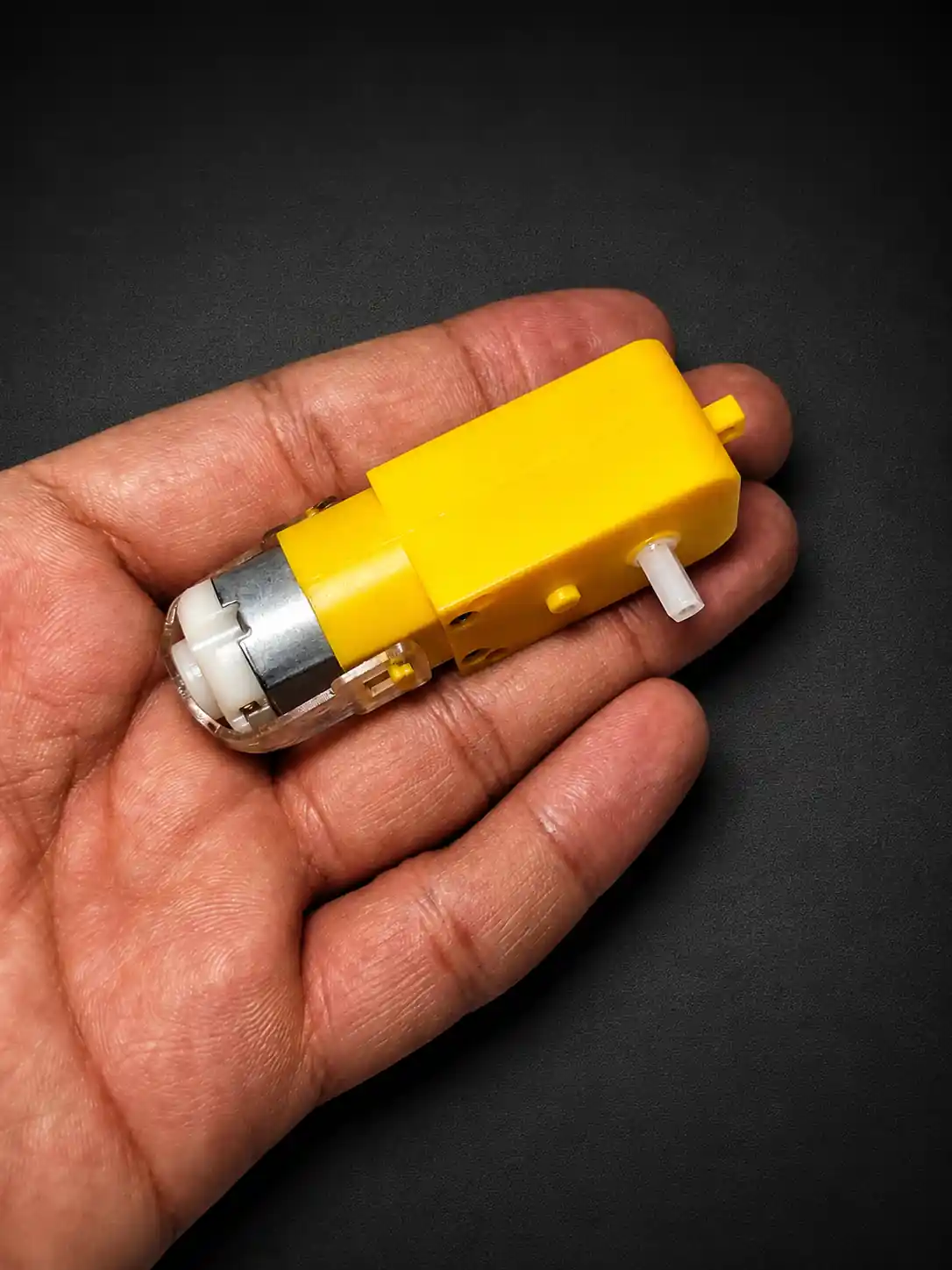

100 RPM BO motor straight

The 100 RPM BO Motor Straight is a compact and durable geared DC motor designed for robotics, automation, and motion control applications. Featuring a straight shaft design with an integrated gearbox, this BO motor provides a balanced combination of speed and torque, making it suitable for robot cars, obstacle avoidance robots, line follower robots, and educational electronics projects.

Built with a high-quality DC motor and reduction gear mechanism, the motor operates at approximately 100 RPM and delivers stable performance with low power consumption. Compatible with robot chassis, BO wheels, motor driver modules, and various development platforms such as Arduino and ESP32-based robotics projects, this motor is widely used by students, hobbyists, makers, and robotics enthusiasts.

Technical Specifications

• Product Type: BO Geared DC Motor
• Motor Type: Straight Shaft DC Gear Motor
• Speed: 100 RPM
• Operating Voltage: 3V–12V DC
• Recommended Voltage: 6V DC
• Shaft Type: Straight Shaft
• Shaft Diameter: Approx. 5.5mm
• Gearbox Type: Plastic Reduction Gearbox
• Rotation Direction: Bidirectional
• Mounting Type: Chassis Compatible
• Body Material: Plastic Housing with Internal Gear Assembly
• Compatible With: BO Wheels, Robot Chassis, Motor Drivers

Package Includes

• 1 × 100 RPM BO Motor Straight

Features

• Compact and lightweight design
• 100 RPM geared motor output
• Straight shaft configuration
• High torque with stable performance
• Low power consumption
• Durable internal gear mechanism
• Supports bidirectional rotation
• Easy installation on robot chassis
• Compatible with BO wheels
• Suitable for educational robotics projects
• Ideal for DIY and automation projects
• Reliable performance and smooth operation
• Beginner-friendly motor solution

Applications

• Line follower robots
• Obstacle avoidance robots
• Robot car projects
• DIY robotics projects
• Educational robotics kits
• Automation projects
• Mobile robot platforms
• Smart vehicle applications
• Embedded system projects
• STEM learning projects
• Prototype robotic systems
• Motion control applications

Dimensions

• Length: 7.0 cm
• Width: 2.2 cm
• Height: 1.8 cm
• Weight: Approx. 28g–35g
